SAUC 64

SAUC_64

Sliding Systems

SAUC 64

Anodize-powder coating, PVDF-wood effect possible, anti-bacterial powder coating
Insulated system
1-2-3-4-5-6 track possible
Glass thickness 62 to 64mm
Various locking option possible
Motorize option possible
Recommended for moderate to high burglary risk areas
Test report by the international agency

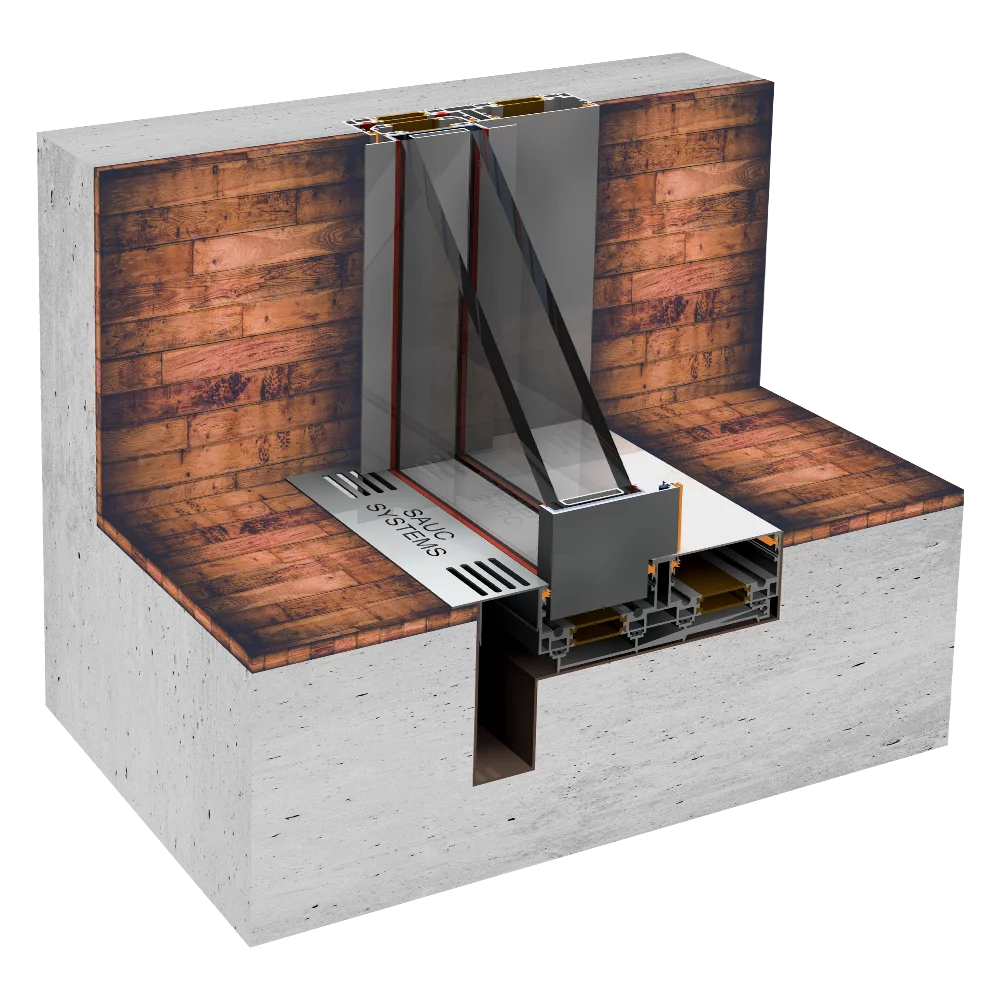

Product overview

Installation Possibilities

Bottom Flush Both Side| Fusion| Inline Glazing| Side Flush Both Side

Specifications

Air Permeability (EN 12207/EN 1026*)

Class 4

Thermal Resistance (EN 673)

Up to 0.65 W/m2K With glass Ug 0.5

Wind Load Resistance (EN 12208 / EN 1027*)

Class C5

Water Tightness (EN 12208 / EN 1027*)

Class 9A

Sound Insulation (DIN 4109)

45 dB- Class 5

Burglary Resistance (EN 1627)

RC5

Locking Variants

180 Lock| Electo Drop Bolt Lock| Key Lock (cylinder)| Self Lock| Up Down Lock

Limitations

Glass Thickness

Min

62 mm

Max

64 mm

Max Sash

Height

8000 mm

Width

6000 mm

Max Sq. Mtr.

Sliding

12

Fixed

18

Track Possibilities

1 Track| 2 Track| 3 Track| 4 Track| 5 Track| 6 Track

2 Track Typologies

3 Track Typologies

4 Track Typologies

IMAGE GALLERY

Downloads

Free Access

SAUC 64 Brochure

Login Required

Please login to access documents

These technical documents are accessible to our Manufacturers and System Integrator Associates only.
