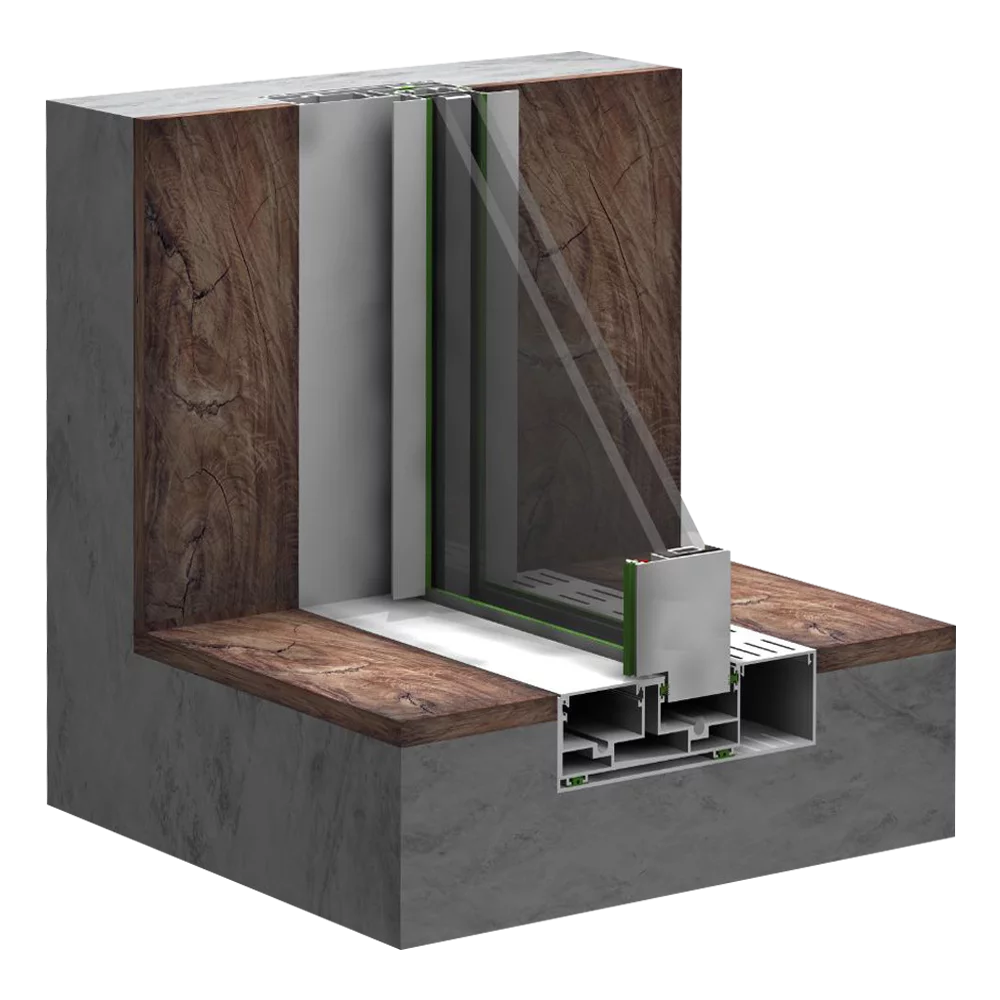

sauc_32
SAUC 32
  • Anodize-powder coating, PVDF-wood effect possible, anti-bacterial powder coating
  • Non-insulated system
  • 2-3-4 track possible
  • Glass thickness 32mm to 34mm can be combined with lamination glass
  • Various locking option possible
  • Recommended for moderate burglary risk areas
  • Test report by the international agency

Product overview

Installation Possibilities

Fusion
Bottom Flush Both Sides
Side Flush Both Side
Inline Glazing
Bottom Flush Both Side| Fusion| Inline Glazing| Side Flush Both Side

Specifications

Air Permeability (EN 12207/EN 1026*)
Class 4
Thermal Resistance (EN 673)
Up to 2.80 W/m2K With glass Ug 1.6
Wind Load Resistance (EN 12208 / EN 1027*)
Class C5
Water Tightness (EN 12208 / EN 1027*)
Class 9A
Sound Insulation (DIN 4109)
37 dB- Class 3
Burglary Resistance (EN 1627)
RC4

Locking Variants

180 Lock| Electo Drop Bolt Lock| Key Lock (cylinder)| Self Lock| Up Down Lock

Limitations

Glass Thickness

Min
32 mm
Max
34 mm

Max Sash

Height
4500 mm
Width
2400 mm

Max Sq. Mtr.

Sliding
5
Fixed
12

Track Possibilities

2 Track| 3 Track| 4 Track

2 Track Typologies

3 Track Typologies

4 Track Typologies

Installation Options
