SAUC 28 12 - SAUC

Sliding Systems

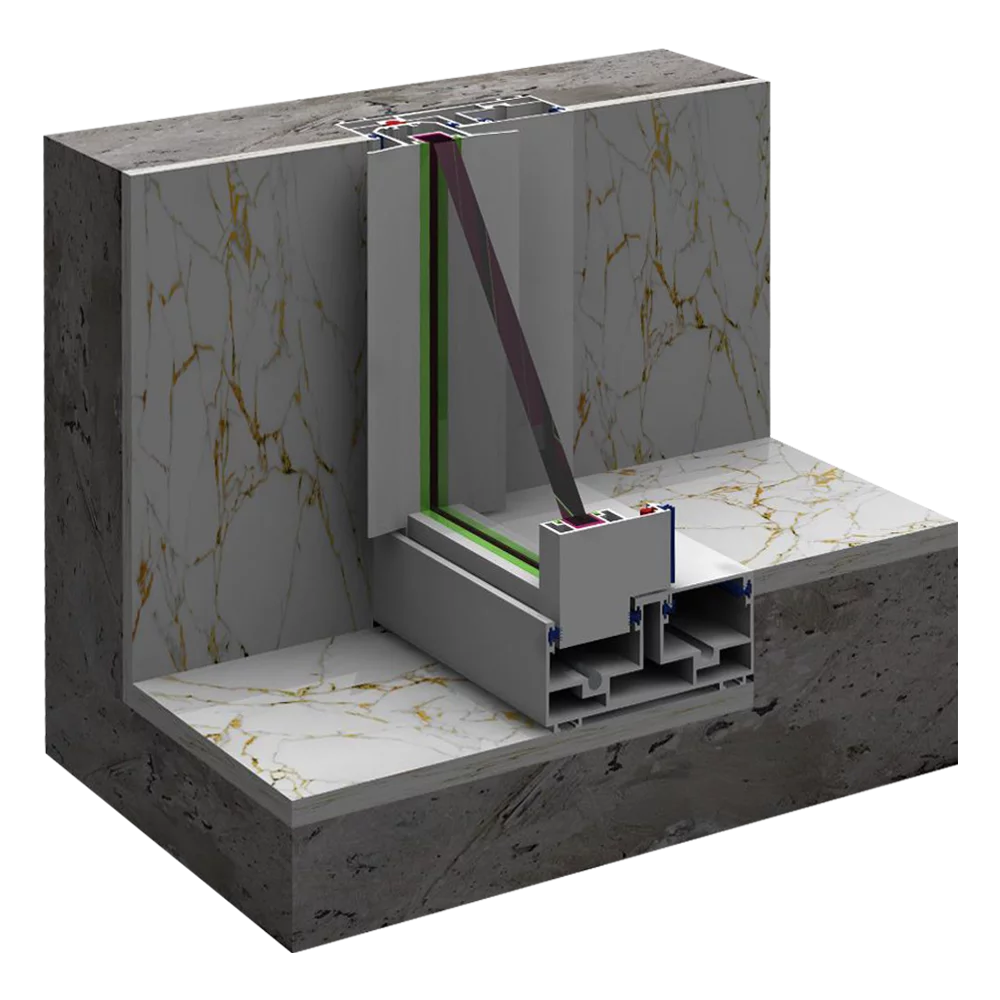

SAUC 28 12

sauc_2812

Sliding Systems

SAUC 28 12

Anodize-powder coating, PVDF-wood effect possible, anti-bacterial powder coating
Non-insulated system
2-3-4 track possible
Glass thickness 10mm to 13.5mm
Up Down Lock, Self Lock, Key Lock options available
Suitable for low to moderate burglary risk areas
Test report by the international agency

Product overview

Installation Possibilities

Bottom Flush Both Side| Side Flush Both Side

Specifications

Air Permeability (EN 12207/EN 1026*)

Class 4

Thermal Resistance (EN 673)

Up to 4.80 W/m2K With glass Ug 4.6

Wind Load Resistance (EN 12208 / EN 1027*)

Class C3

Water Tightness (EN 12208 / EN 1027*)

Class 9A

Sound Insulation (DIN 4109)

30 dB- Class 2

Burglary Resistance (EN 1627)

RC3

Locking Variants

Key Lock (cylinder)| Self Lock| Up Down Lock

Limitations

Glass Thickness

Min

10 mm

Max

13.5 mm

Max Sash

Height

2800 mm

Width

1500 mm

Max Sq. Mtr.

Sliding

5

Fixed

7

Track Possibilities

2 Track| 3 Track| 4 Track

2 Track Typologies

3 Track Typologies

4 Track Typologies

IMAGE GALLERY

Downloads

Free Access

SAUC 28 12 Brochure

Login Required

Please login to access documents

These technical documents are accessible to our Manufacturers and System Integrator Associates only.
