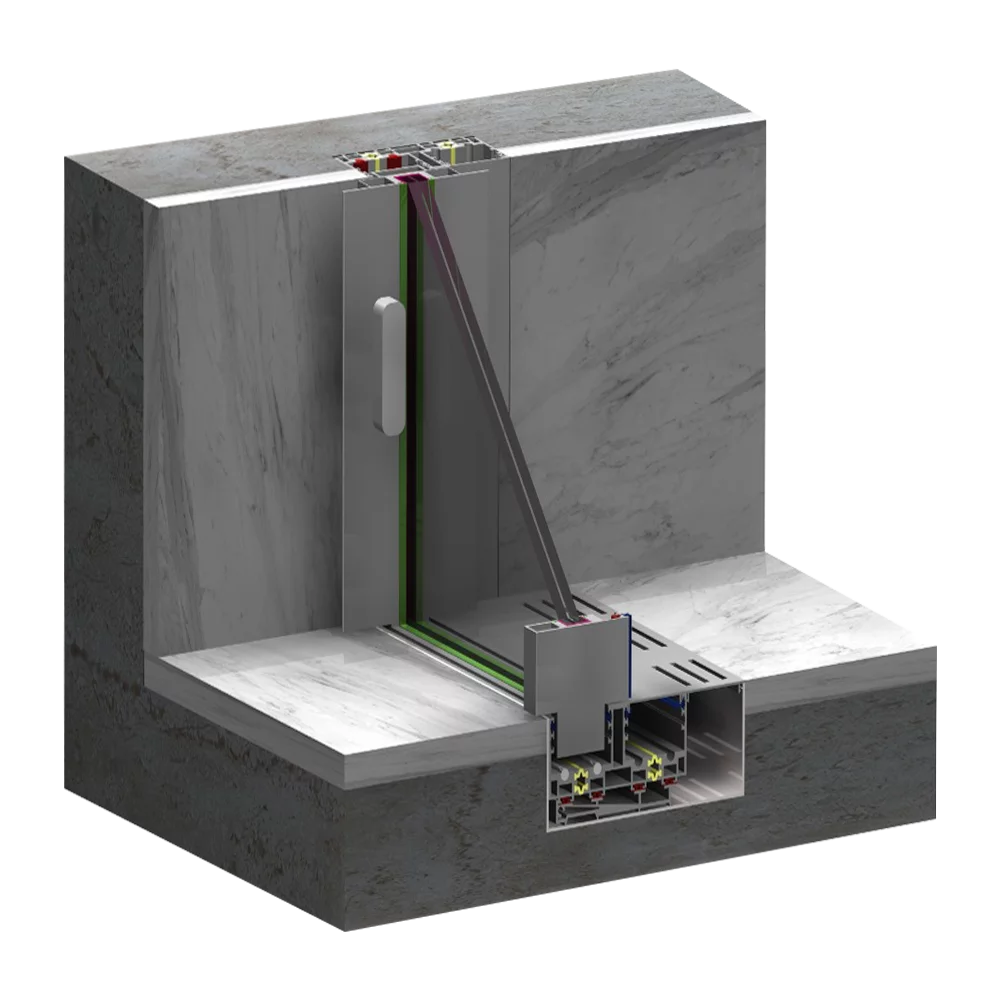

SAUC 20

sauc_20

Sliding Systems

SAUC 20

Anodize-powder coating, PVDF-wood effect possible, anti-bacterial powder coating
Insulated system
1-2-3-4-5-6 track possible
Glass thickness 18mm to 20mm
Various locking option possible
Motorize option possible
Suitable for low to moderate burglary risk areas
Test report by the international agency

Product overview

Installation Possibilities

Bottom Flush Both Side| Fusion| Inline Glazing| Side Flush Both Side

Specifications

Air Permeability (EN 12207/EN 1026*)

Class 4

Thermal Resistance (EN 673)

Up to 4.80 W/m2K With glass Ug 4.6

Wind Load Resistance (EN 12208 / EN 1027*)

Class C3

Water Tightness (EN 12208 / EN 1027*)

Class 9A

Sound Insulation (DIN 4109)

30 dB- Class 2

Burglary Resistance (EN 1627)

RC3

Locking Variants

180 Lock| Electo Drop Bolt Lock| Key Lock (cylinder)| Self Lock| Up Down Lock

Limitations

Glass Thickness

Min

18 mm

Max

20 mm

Max Sash

Height

4500 mm

Width

2400 mm

Max Sq. Mtr.

Sliding

4

Fixed

6

Track Possibilities

1 Track| 2 Track| 3 Track| 4 Track| 5 Track| 6 Track

2 Track Typologies

3 Track Typologies

4 Track Typologies
