SAUC 10 - SAUC

Sliding Systems

SAUC 10

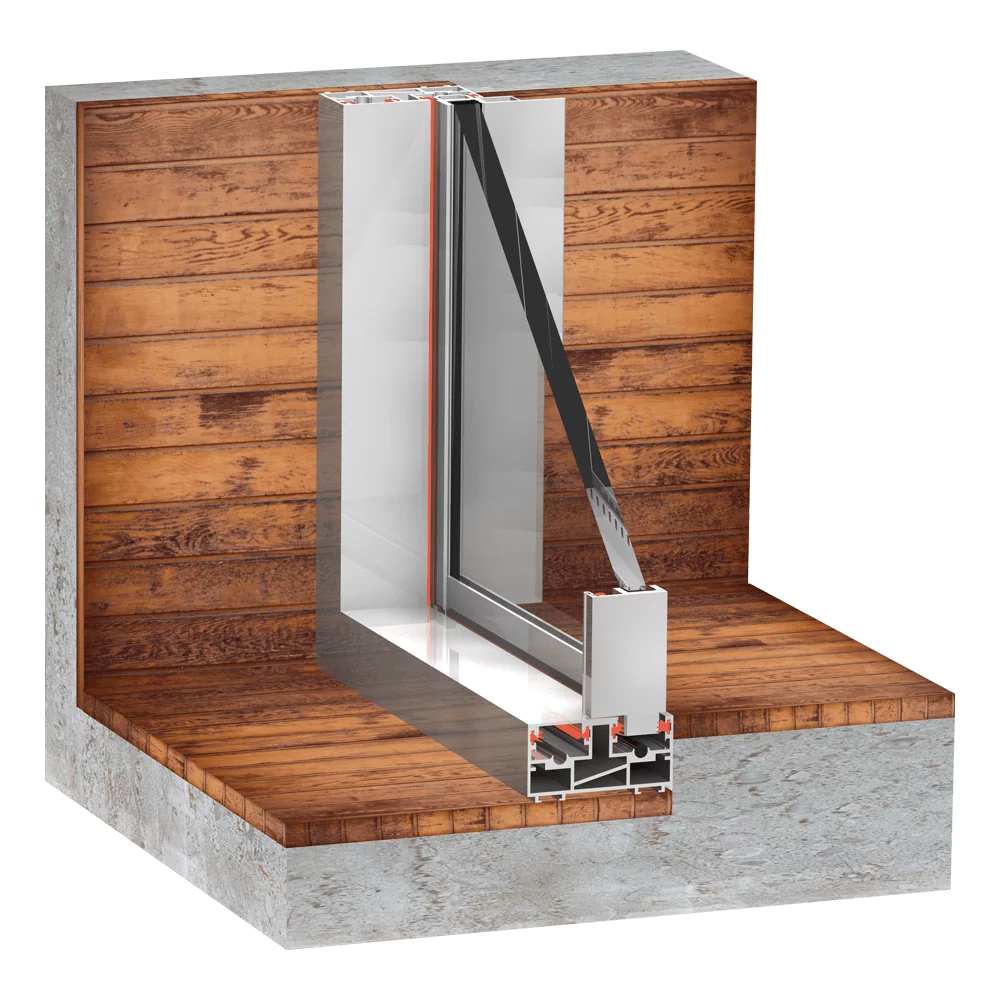

SAUC122

Sliding Systems

SAUC 10

Anodize-powder coating, PVDF-wood effect possible, anti-bacterial powder coating
Non-insulated system
2-3-4-5 track possible
Glass thickness 10mm to 13.5mm
180 Lock option available
Suitable for low burglary risk areas
Test report by the international agency

Product overview

Installation Possibilities

Bottom Flush Inside only| Side Flush Both Side

Specifications

Air Permeability (EN 12207/EN 1026*)

Class 4

Thermal Resistance (EN 673)

Up to 4.80 W/m2K With glass Ug 4.6

Wind Load Resistance (EN 12208 / EN 1027*)

Class C3

Water Tightness (EN 12208 / EN 1027*)

Class 9A

Sound Insulation (DIN 4109)

30 dB- Class 2

Burglary Resistance (EN 1627)

RC2

Locking Variants

180 Lock

Limitations

Glass Thickness

Min

10 mm

Max

13.5 mm

Max Sash

Height

2500 mm

Width

1500 mm

Max Sq. Mtr.

Sliding

4

Fixed

6

Track Possibilities

2 Track| 3 Track| 4 Track| 5 Track

2 Track Typologies

3 Track Typologies

4 Track Typologies

IMAGE GALLERY
